April 22, 2007

Fun with Ubuntu 7.04 (Feisty Fawn)!

Ubuntu is a widely popular GNU/Linux distribution for 'human beings'. It is based on Debian and thus is free and easy to use. The latest version of Ubuntu, i.e. Ubuntu 7.04 (Feisty Fawn) was released on 19th April, 2007. Having used OpenSuse 10.2 and getting awed by Compiz and Beryl's cool 3D effects on it, i really wanted to try the same on Ubuntu. Here are some of the cool new features of Ubuntu 7.04 (http://www.ubuntu.com/getubuntu/releasenotes/704tour):

Ubuntu 7.04 Features
  • Migration Tool:

    Windows migration tool - The new migration tool recognizes Internet Explorer favorites, Firefox bookmarks, desktop wallpaper, AOL IM contacts, Yahoo IM contacts and imports them in Ubuntu. This offers easier and faster migration for new users of Ubuntu and individuals wanting to run a dual partition. In addition to single accounts, you can migrate several users' settings in Ubuntu.

    http://www.ubuntu.com/files/u1/migration-assistant.jpg

  • Easy installation of multimedia codecs:

    Playing an MP3 or other media file just got a lot easier. If the required pieces are not yet installed, 7.04 will get the correct codecs for you, no more searching and no need for long and complicated instructions.

  • Desktop Effects

    Stunning new desktop effects are available as a technology preview for users who choose to enable them. They remain turned off by default, for the benefit of users with older or less powerful chips and certain non-supported graphics cards.

  • Networking Improvements

    Easier connection to wireless networks

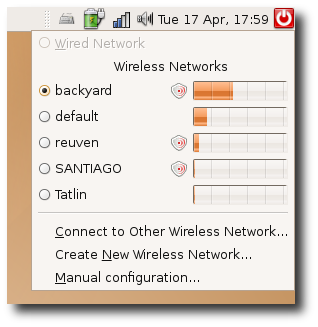

    New in 7.04 is Network Manager, a simple way to find and connect to wireless and wired networks. With a single click, view all the available wireless networks and their strengths. For those on a secured network, WPA support is built in right out of the box.

  • Zeroconf for instant networks

    For those times without a router or any existing network, 7.04 includes the ability to connect instantly, via Avahi, a free Zeroconf implementation. It allows programs to publish and discover services and hosts running on a local network with no configuration. It also allows easy connection to network printers, music shares, and much more.

  • Easier install of proprietary drivers

    The new Restricted Drivers Manager allow users to easily install and manage proprietary drivers for wireless and video graphics cards and other hardware that may not have completely Free drivers.

  • New Artwork

    Feisty features all new artwork; check out the new Desktop Background image, and a boot-up splash image that has more 'bling'. The new theme also includes a polished icon set.

  • Easy Third Party Installation

    Installation of popular third party software has never been easier. With a click of a button you can now install Java, Flash and other commonly-requested applications.

  • Better debugging of crashes

    For those times when programs crash, 7.04 builds in a new tool to catch the data about that crash and make certain all the right information gets to the developers, making a better Ubuntu experience for all.

  • Xorg 7.2 included

    Keeping in step with the cutting edge mentality, X11R7.2, the third release of the modular X Window system, is utilized in this and future Feisty releases. X11R7.2 comes with significant stability and correctness fixes, including improved auto-configuration heuristics, enhanced support for GL-based compositing managers such as Compiz and Beryl, and improved support for PCI systems with multiple domains. It also incorporates the new, more extensible XACE security policy framework.

  • New Games: Sudoku and Chess

    With a change of maintainers in gnome-games, the plea for new and more exciting games was heard. After two surveys, one to figure out which game to remove and another to determine to which one to add, two winners emerged: gnome-soduku and glchess. Both of these games have now been added to gnome-games 2.17 and you can find them under Applications > Games > Chess or Sudoku. Of course, one game did get axed. Sadly Ataxx, a game similar to Reversi and Othello, didn't make it.

    Chess, GNOME style

    https://wiki.ubuntu.com/FeistyFawn/Herd1?action=AttachFile&do=get&target=chess.png

    Sudoku, GNOME style

    https://wiki.ubuntu.com/FeistyFawn/Herd1?action=AttachFile&do=get&target=sudoku.png

  • Quick diagnostic tools

    Disk Usage Analyzer allows you to easily view disk usage statistics in a more intuitive manner.

    Disk analyzer

    https://wiki.ubuntu.com/FeistyFawn/Herd1?action=AttachFile&do=get&target=boabob.png

  • Help Center

    In order to make Help more accessible, Feisty features a brand new Help Center with an easier to use interface that is more stylish.
  • Support for more hardware, including Intel Macs

    As with every new release, 7.04 comes with support for new hardware, including better support for laptops and newer peripherals. Printing support has also been updated, to support more features and newer printers.

Here we will discuss the Ubuntu installation in detail.

Getting Ubuntu
The Ubuntu installation comes in a standard CD (~700MB) so even people with slow internet connections can download it without much hassle. However, if you don't have an internet connection, you can request the CD from the Ubuntu download page. Here's the download link for Ubuntu 7.04:
http://www.ubuntu.com/getubuntu/download

and here's the mirror link for the same:
http://www.ubuntu.com/getubuntu/downloadmirrors

The coolest part of the Ubuntu CD is that it is a Live installation CD, so you can give it a try first before installation. So, download the Ubuntu 7.04 CD from any of the above locations and burn it to a blank CD.

Put the Ubuntu CD you just burnt in your CD-ROM drive and reboot your PC. Ensure that you have selected CD-ROM as the first boot option in the BIOS. After rebooting your PC with the Ubuntu CD, you will get a cool looking boot screen. Just select the default option i.e. "Install/ Boot from CD" and press Enter. If everything goes well, you will get a cool looking Ubuntu desktop as shown below:


Installation
  • Just click the "Install" icon on the desktop to start the Installation wizard. You will be greeted with the wonderful welcome screen:


  • The installation wizard supports various languages. Just read the welcome message and release notes if you like and press the "Forward" button. On the next screen select your timezone and press the "Forward" button:


  • Then, select your preferred keyboard layout:


  • Next comes the most dreaded part of any GNU/Linux installation (especially for new users) i.e. partitioning. In Ubuntu partitioning has been greatly simplified and even newbies wouldn't find it too difficult. The basic requirement for partitioning is that you should either have some free space or an existing GNU/Linux partition on your hard disk. You should select manual partitioning only if you already know about partitioning in general and want to have complete control on your GNU/Linux installation. I chose manual partitioning as shown in the screen shot below:


  • Next, you have to chose the partitions onto which your GNU/Linux installation would reside. The Ubuntu installation requires at least two partitions i.e. a root partition (/) and a swap partition. I had some free space in my hard disk for the root partition and an existing swap partition from another GNU/Linux installation as shown in the screen shot below:


  • If you have a similar setup, highlight the free space and click "New Partition" to specify the partition size and mount point. Specify the partition type as "ext3" and mount point as "/" as shown in the screen shot below and press the "OK" button. Similarly create a swap partition by specifying the partition type as "swap" and partition size greater than or equal to the amount of your physical RAM. For example, if you have 1 GB RAM, create a swap partition of 2 GB. Recheck the partitioning screen to ensure that everything is correct and click the "Forward" button.


  • Next comes the unique migration screen which is hard to find in other GNU/Linux distros. Here you can import your documents and setting from Windows or other existing GNU/Linux partitions.


  • Next comes the user configuration screen. Here you have to specify the default user name and password for your GNU/Linux installation.


  • Click Forward and you will be greeted with Installation summary page. Once you are satisfied with it press the Install button to begin installation.
Installation will take about 15-20 minutes depending on the configuration of your PC. Reboot your PC after the installation is over and enjoy the fresh and uber cool flavor of Ubuntu.

Post Installation Tweaking
If you have a Nvidia or ATI based graphics card, then you will be overjoyed as Ubuntu provides you the option of downloading proprietary drivers for your card. But if you have an Intel based on-board solution like me, then you might face some problems like:
  • Ultra low resolution after installation (640 x 480)
  • Desktop Effects (3D desktop) disabled.
In addition to this, the Ubuntu installation doesn't allow you to set the root password.

If you face the issues mentioned above, follow these simple steps:
  • Setting the root password: At the Ubuntu grub boot menu, select the recovery option and press enter. After this, you will get the root terminal. Just use the 'passwd' command to set the new root password.
  • Setting the correct resolution: Use the following command in the root terminal to set the correct resolution:
_____
# dpkg-reconfigure xserver-xorg


You will get a plethora of configuration options in this command, so just choose the default settings for most of the options. Choose "Intel i810" as your graphics driver if you have an Intel based solution and also choose the correct resolution. Type exit to get your newly configured desktop.

Broadband Setup
Broadband internet setup is a breeze in Ubuntu. ADSL based broadband provides 2 modes to connect to the internet i.e.
  • PPPoE mode
  • Bridged mode
You can use both modes to connect to the internet on Ubuntu. You can check your internet mode in the ADSL modem setup page (e.g. http://192.168.1.1) in a browser. If you are using the PPPoE mode, you are not required to do any configurations in Ubuntu and your broadband internet will work by default. But if you want to use the Bridged mode, you have to follow the steps mentioned below (you'll need DNS information of your broadband service provider) :
  1. Go to System->Administration->Network. In the "Connections" tab choose "Wired Connection", click properties and ensure that the configuration is "DHCP". In the DNS tab, add the DNS addresses provided by your service provider and click "Close".
  2. Try pinging your your router ip i.e. 192.168.1.1, 192.168.1.2 etc through a terminal.
  3. Then run the following command :
$ sudo pppoeconf
Choose default setting in all options. When prompted for user name, password, enter correct user name, password provided by your internet service provider.

After this, run the following command to start your dialer:
$ sudo pon dsl-provider
To disconnect:
$ sudo poff dsl-provider
After connecting (i.e. after running the pon command, try pinging any website from the terminal i.e. google.com). If you can ping it then your internet is connected!

You can also verify by pinging ur DNS server or by using the following command:
$ ifconfig ppp0
The output should be like this:
ppp0 Link encap:Point-to-Point Protocol
inet addr:122.163.133.73 P-t-P: 202.56.215.135 Mask: 255.255.255.255

Enabling Desktop Effects

If you want awesome eye candy like a 3D cube based desktop, translucent and wobbly windows, rain and snow effects etc. you will need to enable the Desktop Effects. First ensure that you have the set the correct resolution as mentioned above and click "System->Preferences->Desktop Effects" from the Ubuntu system menu to enable the Desktop effects as shown below:


Ubuntu 7.04 ships with the Compiz 3D window manager by default. Compiz is a great way to experience awesome eye candy without doing any configurations whatsoever on Ubuntu. You just need to enable the "Desktop Effects" from the System menu as shown above.
Compiz is cool as fine as basic 3D effects are concerned, but if you want jaw-dropping 3D effects and want to experience the real next generation 3D effects, try Beryl. Beryl is a fork of Compiz and uses OpenGL to produce drop dead gorgeous 3D effects. Here are two alternate steps about installing and configuring Beryl on your Ubuntu desktop:

Graphical installation using Synaptic Package Manager
Follow these simple steps to install Beryl onto your Ubuntu installation. You will need a fast internet connection to download the required packages. The download size is approximately 7MB.
  1. Fire up the "Synaptic Package Manager" from "System->Administration->Synaptic Package Manager".
  2. Press the Search button and enter "Beryl" in the search box.
  3. After pressing the enter key, the Synaptic package manager would display all the Beryl packages. Right-click on a package and choose "Mark for Installation". Try to select the maximum number of Beryl packages from the list, so that you can get all the eye candy through Beryl plug-ins.
  4. Click on the Apply button to download and install the required Beryl packages.
Here are the screen shots for the above mentioned steps:


Text based Installation

Instead of using the graphical Synaptic package manager, you can download the Beryl packages using these simple steps:
  1. Fire up a terminal and enter the following command:
    sudo apt-get install beryl-ubuntu
  2. This will automatically install Beryl and its required dependencies onto your Ubuntu installation.
Running Beryl
Now, comes the real part i.e. running our newly downloaded Beryl desktop. You can use either of the following methods for running Beryl:

Fire up a terminal and type the following command to start the Beryl 3D desktop:
$ beryl-manager
OR

Go to "Applications->System Tools->Beryl Manager" to run the Beryl 3D desktop.

If all goes well, you should see the Beryl splash screen. Your system tray should show the Beryl icon - a red gem - that you can use to adjust beryl's and emerald's settings. Click on 'Beryl settings manager' or Emerald, the theme manager.

Beryl has a plug-in architecture and provides a host of configuration options for customizing your 3D desktop. Here's a screen shot of the Beryl settings manager:
Adding Beryl to Session Startup
So, you really liked the eye candy offered by Beryl and want to load it automatically every time with your Ubuntu desktop (GNOME). Follow these simple steps to add Beryl to session startup:
  1. Go to System->Preferences->Sessions
  2. In the "Startup Programs" tab, click the "New" button and type "beryl-manager" in the dialog box as shown below:
Beryl Keyboard Shortcuts
Here are some cool keyboard shortcuts for various Beryl effects:
  • 3D Desktop Cube: Ctrl+Alt+(Arrow Keys), Ctrl+Alt+(Hold and drag left mouse button.
  • Application Switcher with preview: Alt+Tab
  • Ring application switcher: Super+Tab (for application switching on a single workspace, Super+Control+Tab (for application switching on all workspaces)
  • Zoom functionality: Super+mouse scroll
  • Transparency: Alt+mouse scroll
  • Negative windows: Super+N (negative current application window), Super+M (Negative all application windows)
  • View all applications together for easier workspace management: F8
  • Rain Effects: Shift+F9
  • Rainy mouse trail: Super+Ctrl+mouse move
  • Snow Effects: Super+F3
I have tried to list most of the commonly used shortcuts for Beryl 3D effects. If you are able to find some more, please post back here, so that i can add the same here for the benefit of other users.
Here are some screen shots from my system:





That's all for now. I hope you enjoyed reading this writeup. I'll soon put some cool videos for Ubuntu 7.04.

So, what are you waiting for? Pop-in that Ubuntu CD and begin the joy ride!
